Nye deler

Nå er det avgjort hvilken motor som skal kannibaliseres. Det er også bestemt at Gunnar og Bård skal reise til Marinemuseet i Horten og saumfare magasin og lagre etter eventuelle gjenglemte deler.

20.02.2024
21.02.2024
20:46
Arvid Martinussen

Now it has been decided which engine will be cannibalized.

It has also been decided that Gunnar and Bård will go to the Norwegian Navy Museum in Horten and search the storerooms for eventually forgotten parts. They will recognize a needed part when they see it.

Klikk på bildene..

© Arvid Martinussen (AM)

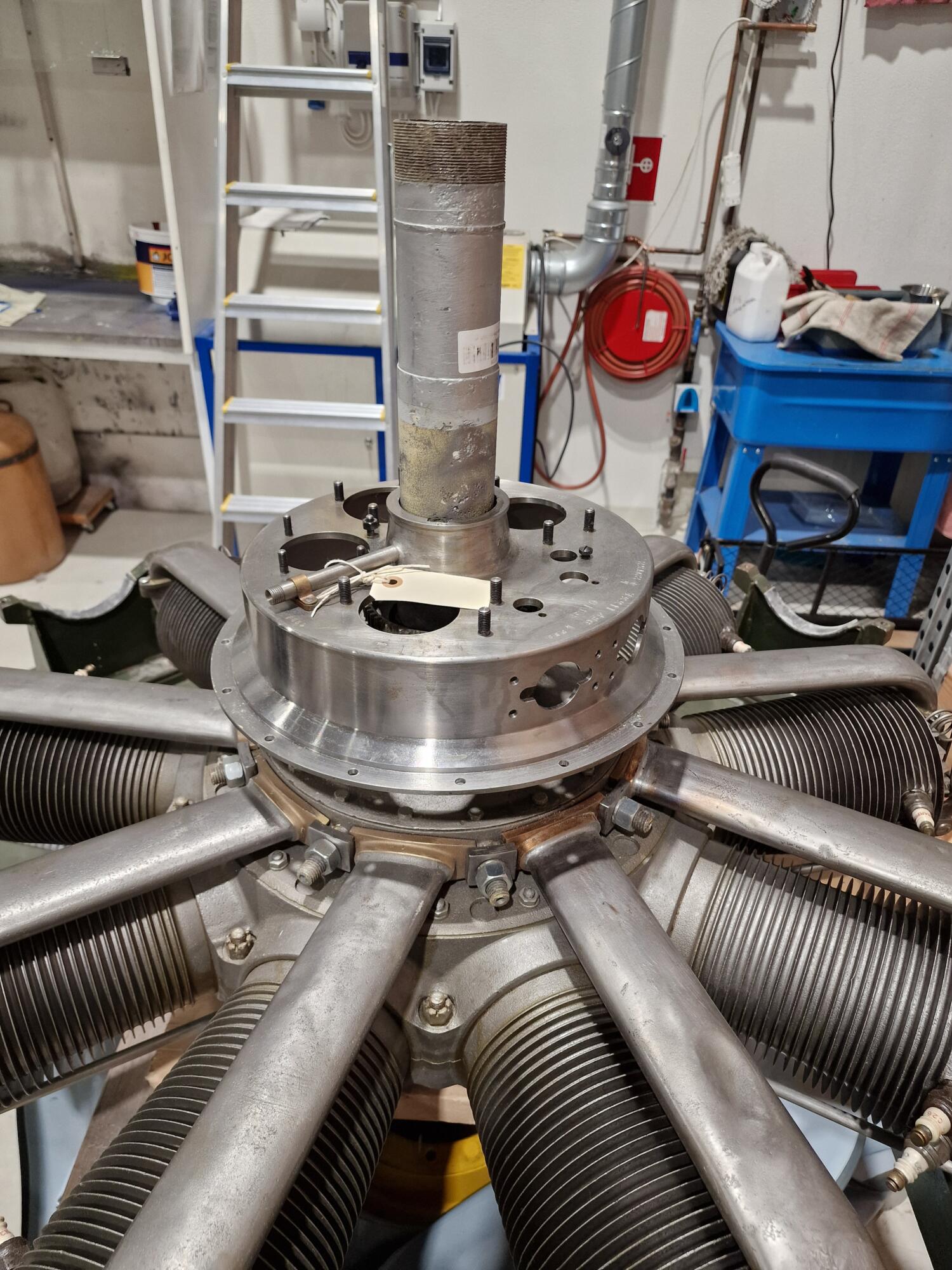

Det er denne motoren det plukkes deler fra. den sto opprinnelig i utstillingen. This is the engine that parts will be picked from. It was originally on display in the exhibition.
Det er denne motoren det plukkes deler fra. den sto opprinnelig i utstillingen. This is the engine that parts will be picked from. It was originally on display in the exhibition.
© AM

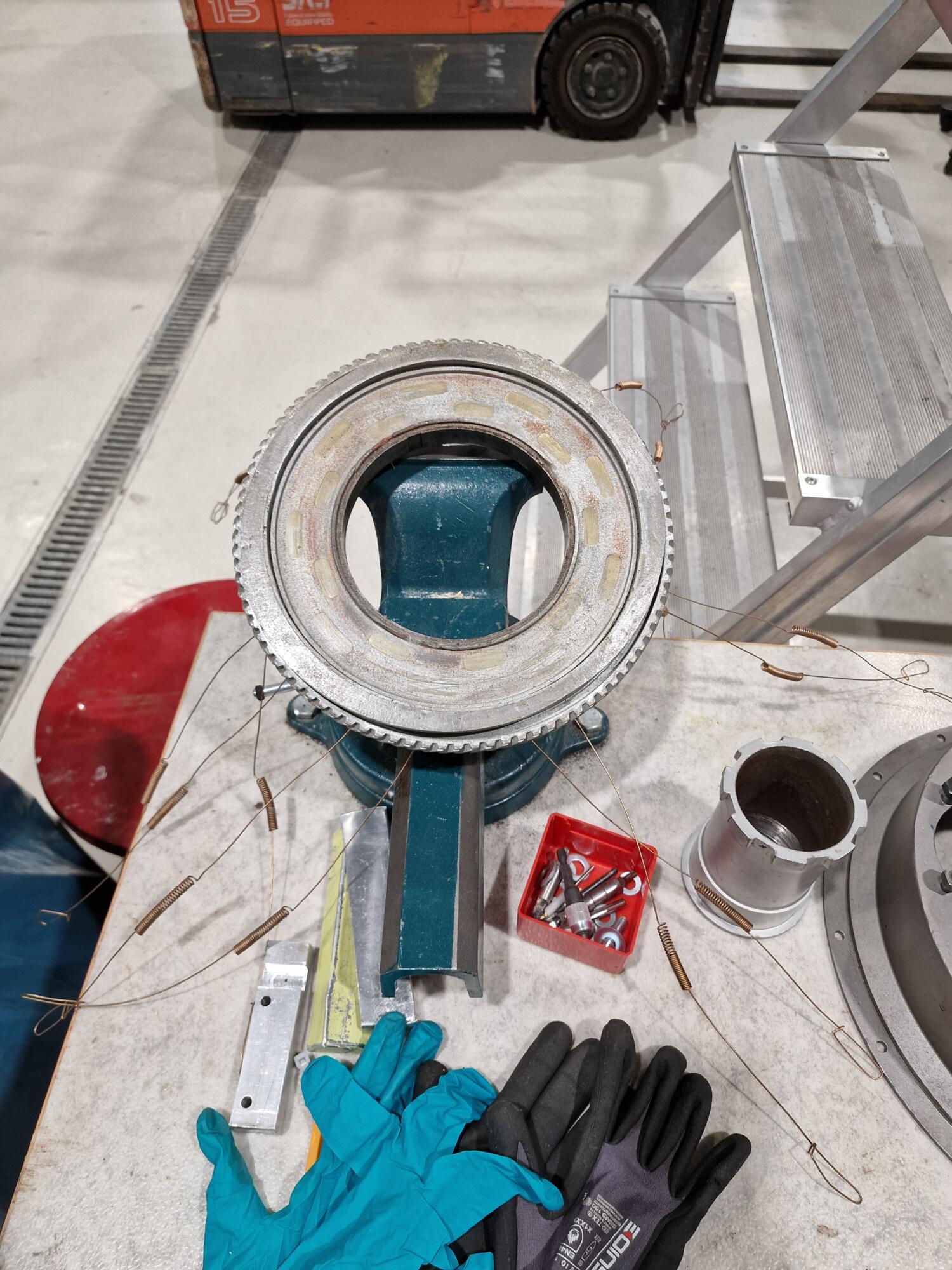

Del av tenningssystemet kan sammemliknes med en fordeler. Kobbertrådene er tenningskablene som festes til tennpluggene med ei løkke i enden. Part of the ignition system that can be compared to a distributor. The copper wires are the ignition cables that are attached to the spark plugs with a loop at the end.
Del av tenningssystemet kan sammemliknes med en fordeler. Kobbertrådene er tenningskablene som festes til tennpluggene med ei løkke i enden. Part of the ignition system that can be compared to a distributor. The copper wires are the ignition cables that are attached to the spark plugs with a loop at the end.
© AM

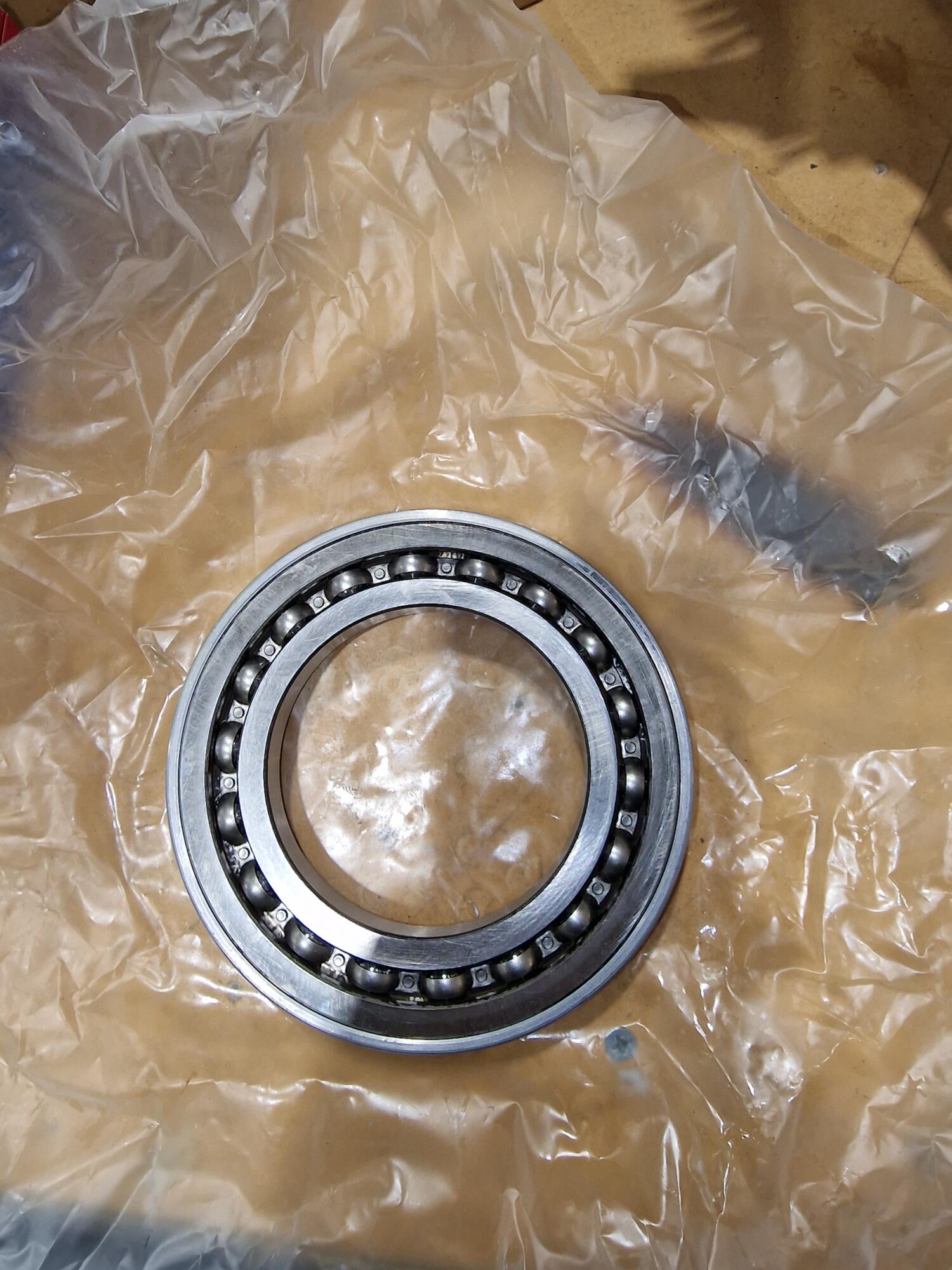

Hovedkulelageret er ikke originalt, og har for liten ytre diameter. Per på verkstedet fikk tak i en stor "stålklump" som han satte i dreibenken og dreide foringen. The main ball bearing is not original and has too small an outer diameter. Per at the workshop got hold of a large "lump of steel" which he put in the lathe and turned a liner out of it.
Hovedkulelageret er ikke originalt, og har for liten ytre diameter. Per på verkstedet fikk tak i en stor "stålklump" som han satte i dreibenken og dreide foringen. The main ball bearing is not original and has too small an outer diameter. Per at the workshop got hold of a large "lump of steel" which he put in the lathe and turned a liner out of it.
© AM

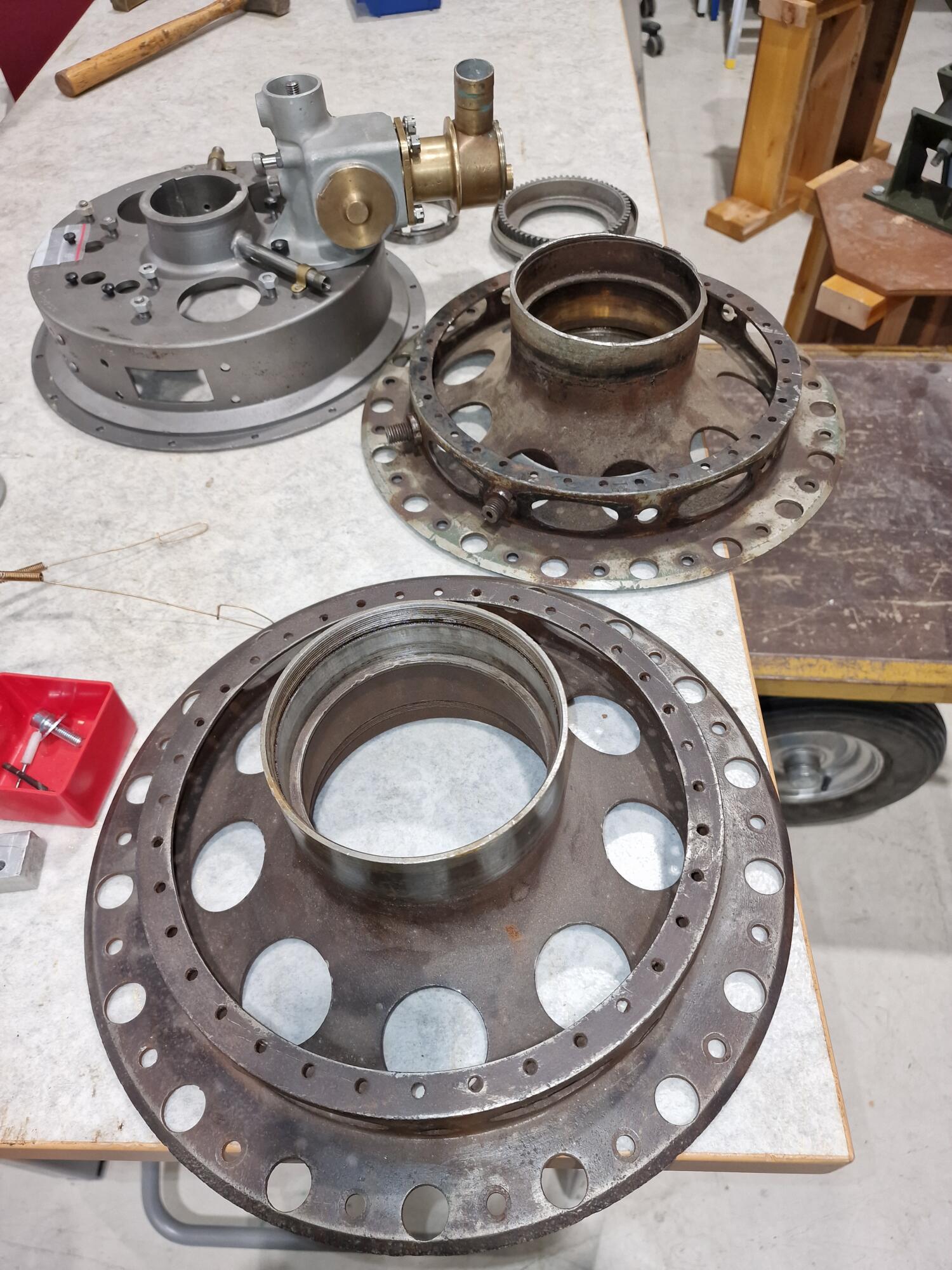

Deler fra "slaktet" som skal brukes til oppbyggingen. Parts from the cannibalized engine that will be used for the build-up.
Deler fra "slaktet" som skal brukes til oppbyggingen. Parts from the cannibalized engine that will be used for the build-up.
© AM

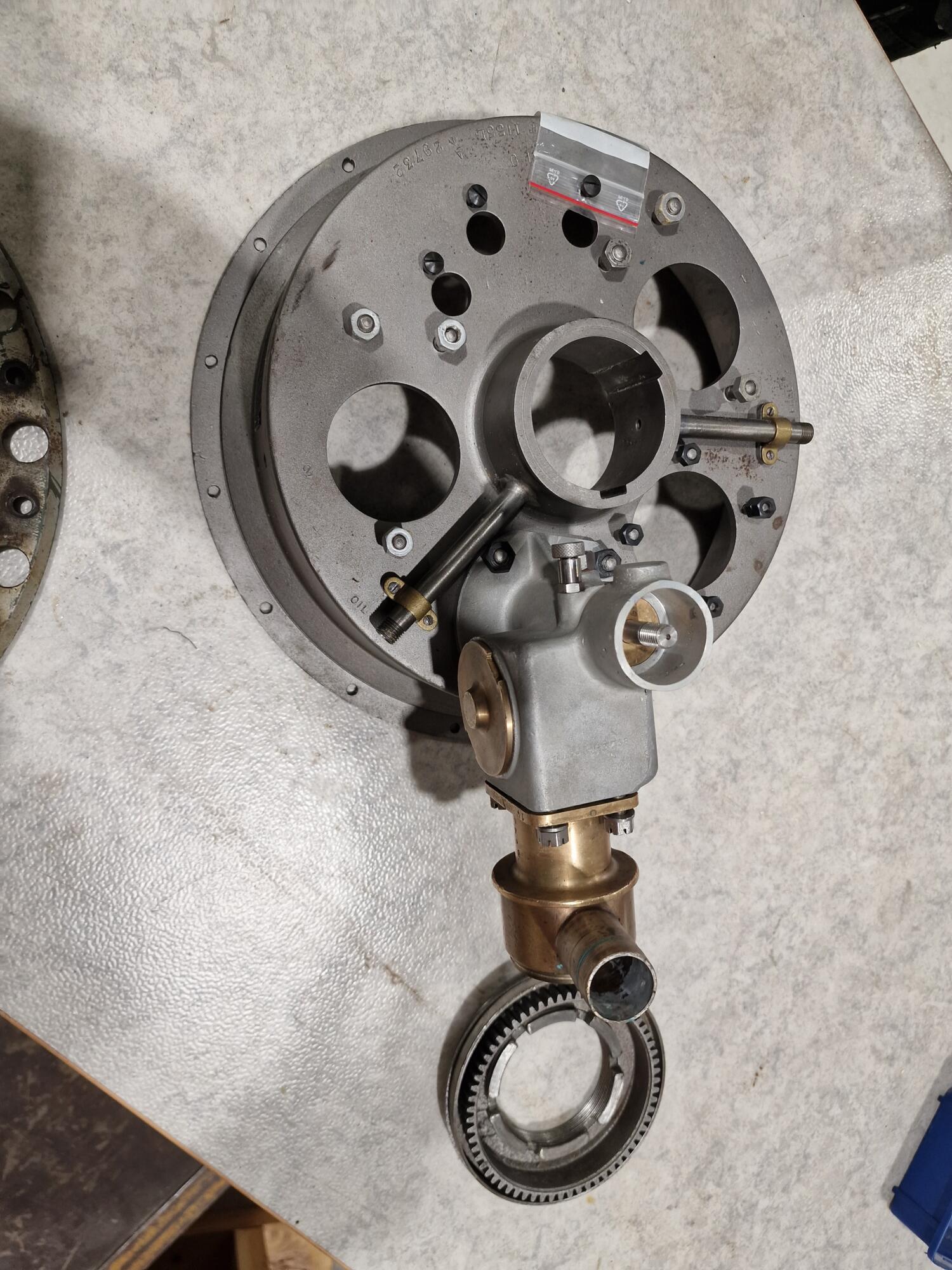

Oljepumpa. Motorer av denne typen hadde et enormt oljeforbruk, rundt en liter castorolje for hver 5 liter drivstoff. To the left in the lower edge of the picture is the oil pump, to the right is the pump that puts pressure on the fuel tank. The oil consumption was 1 liter of castor oil for 5 liters of petrol used. Castor oil can be used as a laxative and caused problems for the pilots who sat in the open air, behind the engines which spat out unburnt oil.
Oljepumpa. Motorer av denne typen hadde et enormt oljeforbruk, rundt en liter castorolje for hver 5 liter drivstoff. To the left in the lower edge of the picture is the oil pump, to the right is the pump that puts pressure on the fuel tank. The oil consumption was 1 liter of castor oil for 5 liters of petrol used. Castor oil can be used as a laxative and caused problems for the pilots who sat in the open air, behind the engines which spat out unburnt oil.
© AM

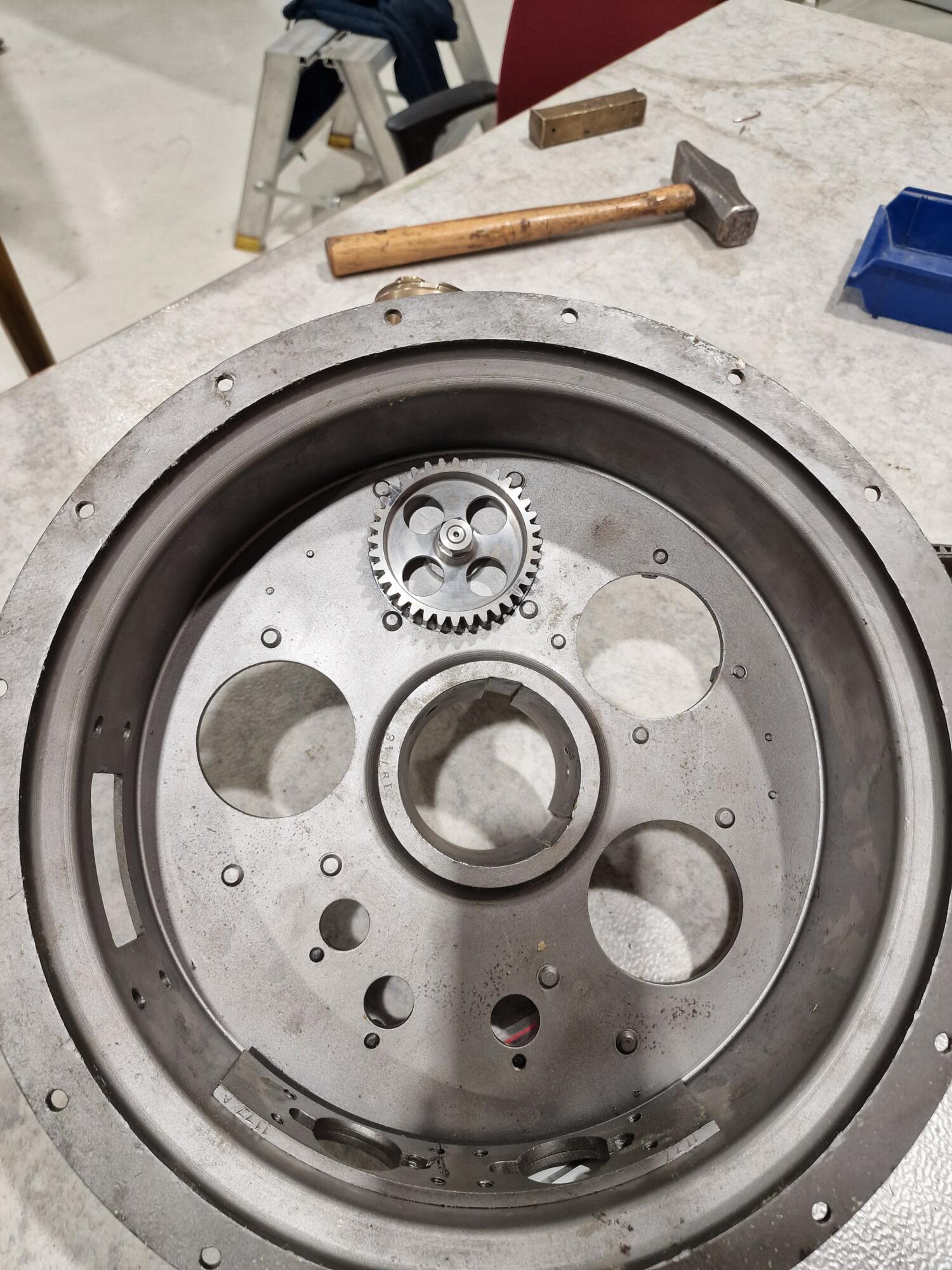

På innsiden av dekslet finner vi tannhjulet som driver oljepumpa. On the inside of the cover we find the gear that drives the oil pump.
På innsiden av dekslet finner vi tannhjulet som driver oljepumpa. On the inside of the cover we find the gear that drives the oil pump.
© AM

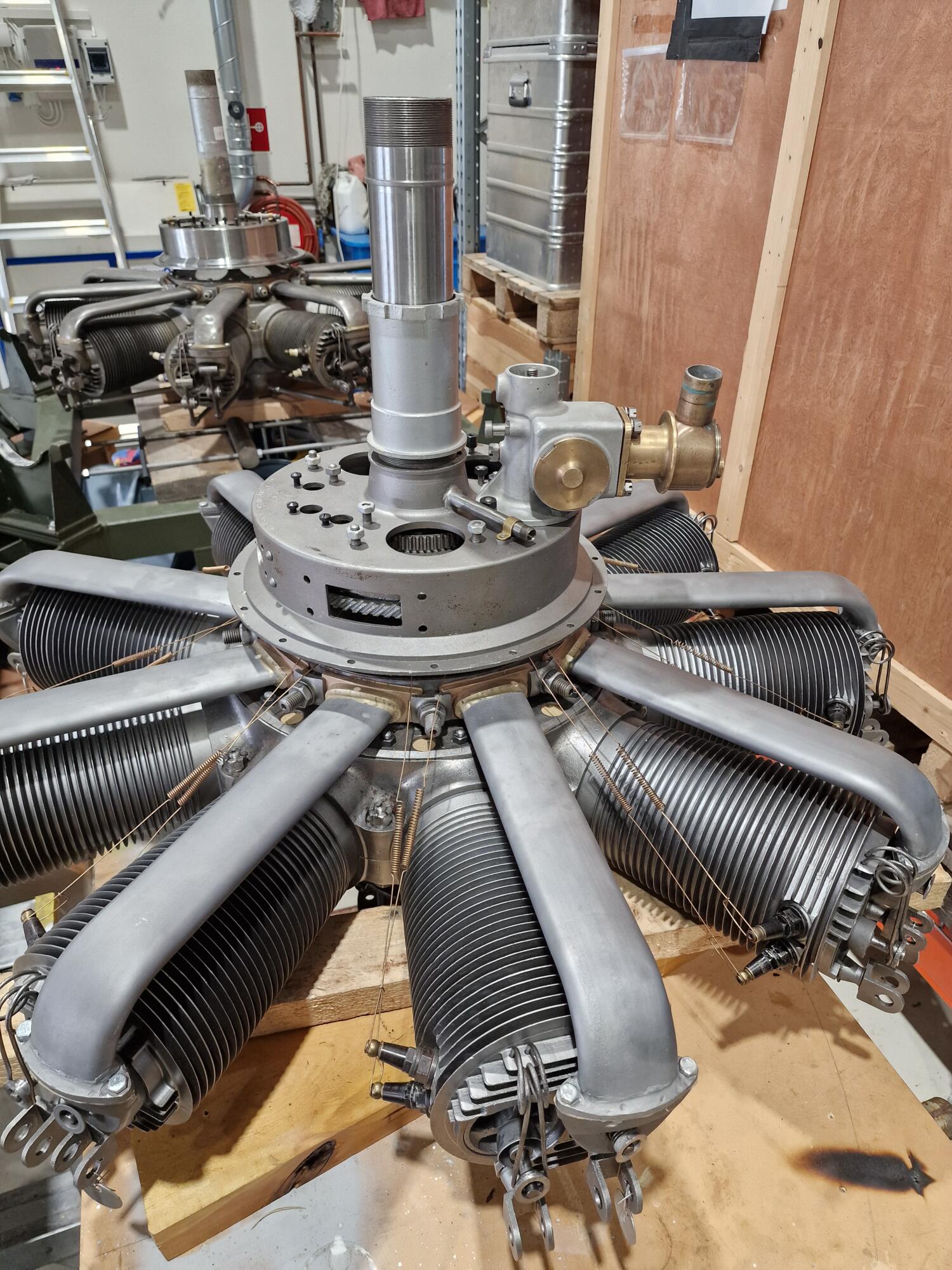

Huset med oljepumpa er kommet på plass. Det samme er hovedlageret. The housing with the oil pump is installed. So is the main bearing.
Huset med oljepumpa er kommet på plass. Det samme er hovedlageret. The housing with the oil pump is installed. So is the main bearing.
© AM.

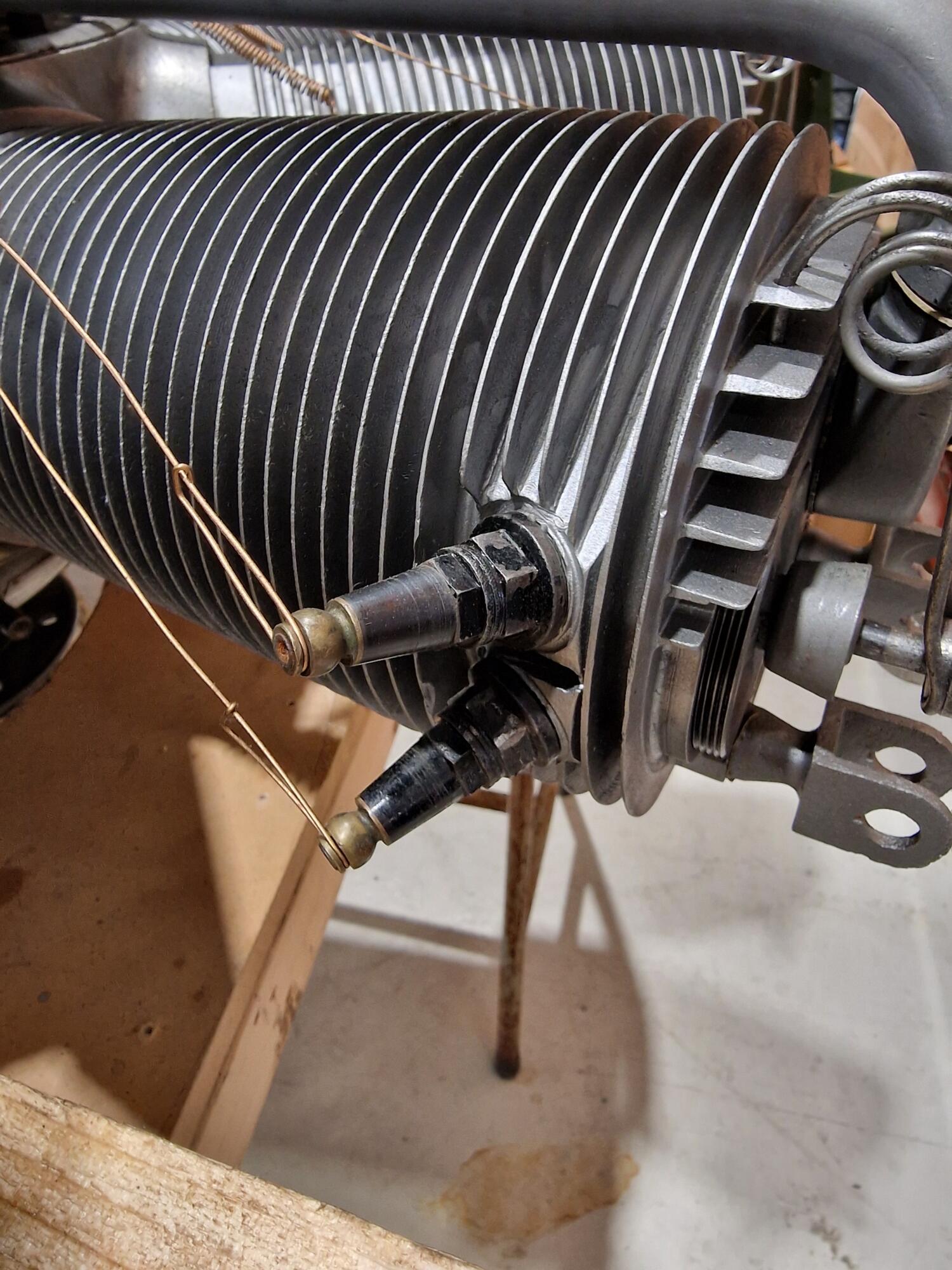

Tro det eller ei. De uisolerte strengene som går til tennpluggene og er festet med kun ei løkke er er det vi i dag vil kalle tenningskablene. Believe it or not but the uninsulated strings that go to the spark plugs and are attached to them with only a loop are what we today would call ignition cables.
Tro det eller ei. De uisolerte strengene som går til tennpluggene og er festet med kun ei løkke er er det vi i dag vil kalle tenningskablene. Believe it or not but the uninsulated strings that go to the spark plugs and are attached to them with only a loop are what we today would call ignition cables.
